PE Flange, or polyethylene flange, is a type of fitting used to connect pipes or tubes in a piping system. Here's a detailed overview of PE Flange:

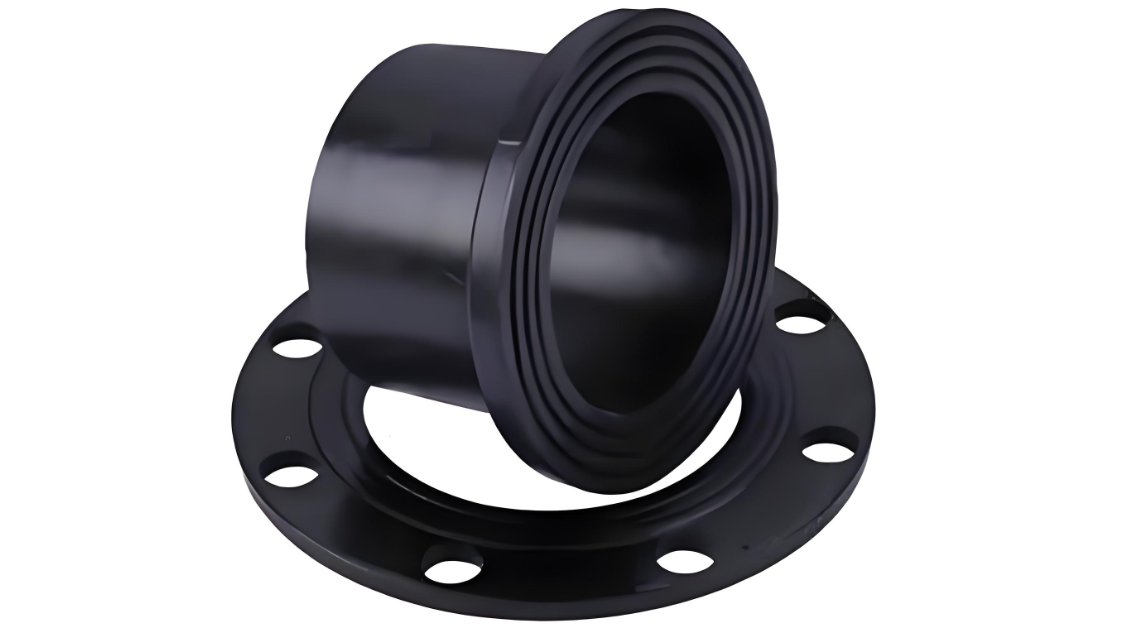

A PE flange is a disk-shaped component made from polyethylene material, with holes around its perimeter for bolting it to another flange. It is commonly used to connect pipes or other equipment in a secure and leak-proof manner.
PE flanges can be classified into several types based on their design and application:
Plane Flange (Socket Flange, Flange Disk): A simple and flat type of flange used for basic connections.
Welding Neck Flange (Butt Welding Flange): Designed with a neck that is welded to the pipe, providing a stronger and more secure connection.
Loose Flange: A type of flange that allows for easy disassembly and reassembly of the piping system by loosening the bolts.
Blind Flange: A flange without a center hole, used to close off the end of a pipe or as a temporary closure during maintenance.
Material: Made from polyethylene, a durable and flexible plastic material that is resistant to corrosion and chemicals.
Pressure Rating: PE flanges are typically rated for pressures up to 1.0 MPa, but this can vary depending on the specific application and manufacturer.
Bolt Holes: The number and size of bolt holes on a PE flange are standardized to ensure compatibility with other flanges and bolts.
Connection Method: PE flanges are connected using bolts and nuts, with a gasket or sealing compound placed between the two flanges to prevent leaks.
PE flanges are widely used in various industries and applications, including:
Water and Gas Distribution Systems: Used to connect pipes in water and gas supply networks.
Irrigation Systems: Ideal for agricultural irrigation systems where durability and corrosion resistance are essential.
Chemical Processing: Suitable for handling corrosive chemicals and other hazardous materials.
Oil and Gas Industry: Used in drilling and production operations where high pressures and temperatures are common.
Installation: PE flanges are typically installed using bolts and nuts, with a gasket or sealing compound placed between the two flanges. Proper alignment and tightening of the bolts are crucial to ensure a leak-free connection.
Maintenance: Regular inspections and maintenance of PE flanges are essential to ensure their long-term performance. This includes checking for leaks, tightening bolts as needed, and replacing gaskets or sealing compounds when worn or damaged.
Durability: PE material is resistant to corrosion and chemicals, ensuring long-lasting performance in various environments.
Flexibility: The flexible nature of PE allows for easy installation and adaptation to different piping configurations.
Cost-Effective: PE flanges are generally more affordable than other materials, making them a cost-effective solution for piping systems.
In summary, PE flange is a versatile and durable fitting used to connect pipes or tubes in a piping system. Its advantages make it a popular choice for a wide range of applications, including water and gas distribution, irrigation systems, chemical processing, and the oil and gas industry. Proper installation and maintenance are essential to ensure its long-term performance and reliability.
