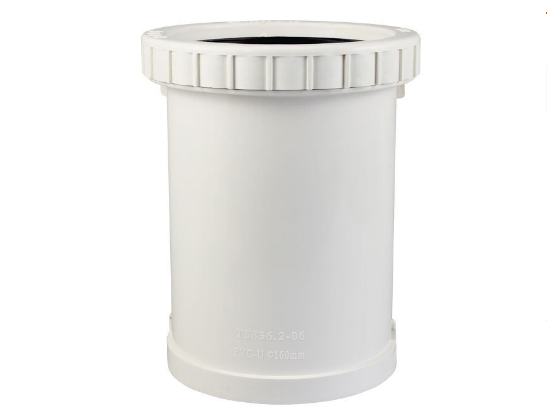

Polyvinyl Chloride (PVC) is a versatile and durable material commonly used in plumbing and piping systems. An extendable telescoping joint, also known as an extendable slide telescopic fitting, is a specialized component designed to allow for adjustable length connections within a piping system. These fittings are particularly useful in applications where pipes need to be extended or retracted without disassembly, providing flexibility and convenience.
Features of PVC Extendable Telescoping Joints:
Adjustable Length: The primary feature of these fittings is their ability to extend or retract, allowing users to adjust the length of the pipe to fit varying distances between connections without the need for cutting or removing the pipe.
Snaplock Mechanism: Many extendable telescoping joints come equipped with a snaplock or similar locking mechanism that secures the fitting in place once the desired length is achieved. This ensures a secure connection and prevents accidental movement.
Ease of Installation: These fittings are designed for quick and easy installation, often requiring no tools and minimal effort to adjust the length.
Versatility: Extendable telescoping joints can be used in a variety of applications where flexible length adjustment is required, such as in HVAC systems, plumbing, or irrigation setups.
Seal Integrity: Despite the adjustable nature of these fittings, they maintain a watertight seal when properly installed, ensuring no leaks occur.
Operation:
The operation of a PVC extendable telescoping joint involves the following steps:
Insertion: Insert one end of the pipe into the telescopic fitting.
Adjustment: Extend or retract the pipe to reach the desired length.
Locking: Engage the snaplock mechanism to fix the fitting in place at the adjusted length.
Securement: Depending on the design, secure the fitting further with clamps, adhesives, or other means if necessary.
Types of Extendable Telescoping Joints:
Slide-Type: This type of telescoping joint slides along the pipe to achieve the desired length. Once the correct length is reached, a locking mechanism is engaged to hold the position.
Telescopic-Type: In this design, one section slides inside another to adjust the length. Locking mechanisms can vary, but common options include spring-loaded pins or screw-tightened collars.
Applications:
Extendable telescoping joints are particularly useful in scenarios where flexibility in pipe length is beneficial. Some common applications include:
HVAC Systems: Adjusting the length of ductwork connections to fit varying distances between components.
Plumbing Systems: Extending or shortening pipes in walls or floors to align with fixtures.
Irrigation Systems: Allowing for seasonal adjustments in sprinkler systems or drip irrigation lines.
Industrial Applications: Providing adjustable connections in machinery or equipment where pipes need to accommodate movement.
Benefits:
Reduced Waste: Minimizes the need for cutting pipes to exact lengths, reducing material waste.
Time-Saving: Quick adjustments save time during installation and maintenance.
Cost-Effective: Eliminates the need for multiple fixed-length fittings, reducing overall costs.
Versatility: Suitable for a wide range of applications requiring adjustable pipe lengths.
Reliability: Ensures secure connections while maintaining the integrity of the piping system.
By incorporating PVC extendable telescoping joints into piping systems, professionals can achieve flexible and efficient installations that adapt to changing requirements without compromising the system's functionality or safety.
