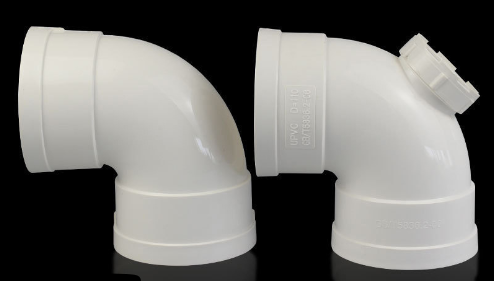

Polyvinyl Chloride (PVC) is a versatile material widely used in plumbing and drainage systems due to its durability, resistance to corrosion, and ease of installation. A PVC 90-degree elbow with an integrated inspection port combines the functionality of a standard elbow with the added benefit of an access point for maintenance and inspection. This fitting is particularly useful in plumbing systems where regular checks and cleaning are necessary to prevent blockages and ensure optimal performance.
Design and Features:
A PVC 90-degree elbow with an inspection port typically includes the following features:
Elbow Configuration: The elbow is designed to change the direction of the pipe by 90 degrees, facilitating the routing of water or waste in a perpendicular direction.

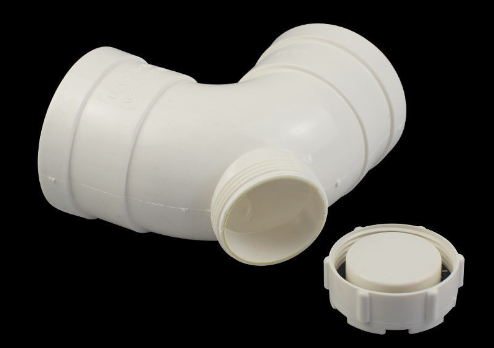

Integrated Inspection Port: The inspection port is a small opening that allows access to the interior of the pipe. It is usually fitted with a removable, threaded cap that can be unscrewed for cleaning or inspection purposes.
Watertight Seal: The inspection port cap is designed to create a watertight seal when closed, ensuring that no leaks occur around the port.
Flush Fit: The inspection port is often designed to sit flush with the surface, whether it is a wall or the floor, to minimize protrusions and avoid creating trip hazards.
Durable Material: The elbow and inspection port are made from PVC, which is known for its resistance to corrosion and chemical degradation.
Benefits of Using a PVC 90-Degree Elbow with Inspection Port:
Improved Accessibility: The inspection port provides easy access to the interior of the pipe, allowing for the insertion of cleaning tools such as snakes or augers to remove blockages.
Routine Maintenance: The port facilitates regular maintenance, helping to prevent clogs and reducing the need for invasive repairs.
Visual Inspection: The inspection port enables visual checks of the pipe's interior, helping to identify signs of wear, corrosion, or buildup before they become serious issues.
Compliance: In many jurisdictions, building codes require accessible points for maintenance. The inspection port helps meet these regulatory requirements.
Installation Considerations:
When installing a PVC 90-degree elbow with an inspection port, consider the following:
Location: Choose strategic locations for the elbow and inspection port to ensure they are easily accessible for maintenance personnel.
Proper Alignment: Ensure the elbow is properly aligned to achieve the desired direction change without introducing unnecessary stress on the pipe.
Secure Connection: Use appropriate PVC solvent cement or push-fit connectors to ensure a secure and watertight connection.
Testing: After installation, test the system for leaks and ensure that the flow meets the design specifications.
Typical Applications:
PVC 90-degree elbows with inspection ports are commonly used in various plumbing applications, including:
Bathroom and Kitchen Plumbing: In bathrooms and kitchens, where pipes need to make sharp turns and are prone to accumulating debris.
Drainage Systems: In drainage systems that require regular cleaning to prevent blockages.
HVAC Systems: In HVAC systems where ductwork or condensation lines need to be routed and maintained.
Commercial and Industrial Settings: In commercial and industrial buildings where plumbing systems are extensive and require frequent inspection and maintenance.
By incorporating a PVC 90-degree elbow with an inspection port into plumbing systems, building owners and maintenance teams can ensure that pipes remain clean and operational, thereby extending the life of the plumbing infrastructure and minimizing downtime.
