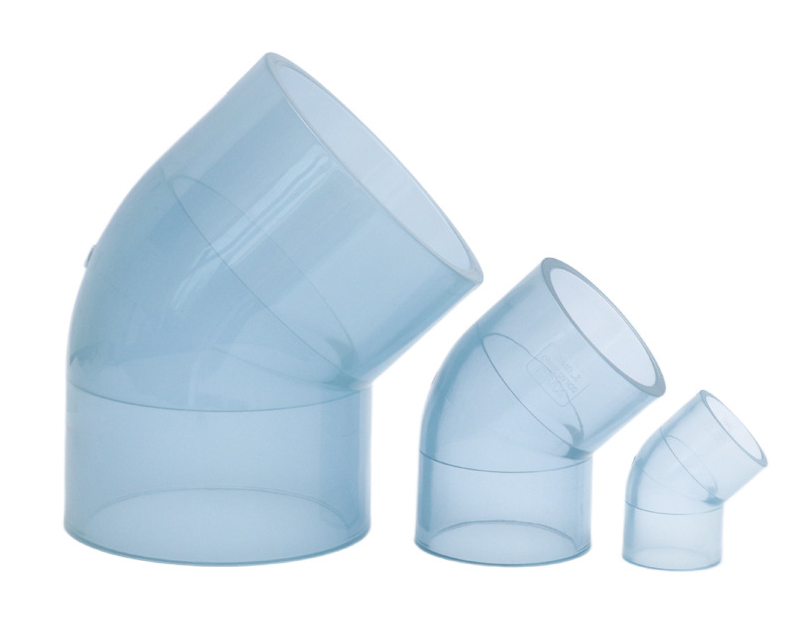

Transparent UPVC 45-Degree Elbow: A Reliable and Visible Solution for Piping Systems


The Transparent UPVC (Unplasticized Polyvinyl Chloride) 45-Degree Elbow is a specialized fitting designed to provide a clear, reliable, and durable change in direction for pipes at a 45-degree angle. Made from high-quality transparent UPVC, this elbow offers excellent visibility, chemical resistance, and ease of installation, making it an essential component for a wide range of industrial and residential applications.

Key Features:

  • Transparency: The clear UPVC material allows for visual inspection of the fluid flow, making it ideal for applications where monitoring the contents of the pipe is necessary.

  • Chemical Resistance: The UPVC material is highly resistant to a wide range of acids, alkalis, and corrosive substances, making it suitable for chemical processing and other corrosive environments.

  • Corrosion Resistance: The 45-degree elbow is resistant to corrosion, ensuring long-lasting performance in harsh environments.

  • Smooth Surface: The smooth inner surface reduces friction and prevents the buildup of debris, ensuring optimal flow and minimizing the risk of blockages.

  • Easy Installation: The elbow features standard dimensions and a user-friendly design, making it easy to connect with other UPVC pipes and fittings. No special tools are required, reducing installation time and effort.

  • Aesthetic Appeal: The clean, professional design adds a polished look to any installation, making it suitable for visible applications.

Benefits:

  • Leak-Proof Seals: The Transparent UPVC 45-Degree Elbow ensures tight, leak-proof connections, preventing fluid leaks that can lead to inefficiencies and damage.

  • Cost-Effective: By simplifying installation and reducing the need for additional components, the elbow offers a cost-effective solution for various needs.

  • Environmentally Friendly: UPVC is a recyclable material, making this elbow an environmentally responsible choice.

  • Versatility: Suitable for a variety of applications, including chemical processing, wastewater treatment, plumbing, and industrial settings, providing flexibility in system design and layout.

Applications:

  • Chemical Processing: Ideal for use in chemical plants where the transport of corrosive liquids and gases is common, ensuring safe and efficient flow.

  • Wastewater Treatment: Perfect for managing the flow of wastewater and sludge in treatment plants, preventing corrosion and ensuring long-term reliability.

  • Plumbing: Suitable for residential and commercial plumbing systems, where visibility of water flow is beneficial for maintenance and troubleshooting.

  • Pharmaceutical Industry: Useful in pharmaceutical manufacturing for transporting chemicals and solutions, ensuring purity and preventing contamination.

  • Food and Beverage Industry: Suitable for food and beverage processing, where hygiene and chemical resistance are critical.

  • Industrial Settings: Applicable in various industrial settings where corrosion-resistant piping is required, ensuring safe and efficient operations.

Installation Tips:

  • Preparation:

    • Clean the ends of the pipes to ensure a clean and tight connection. Remove any dirt, grease, or debris that could interfere with the seal.

    • Ensure the surfaces are dry and free of any burrs or imperfections.

  • Lubrication: Apply a small amount of pipe lubricant to the male end of the pipe to facilitate smooth insertion into the 45-degree elbow.

  • Insertion:

    • Step 1: Insert the male end of one pipe into one side of the 45-degree elbow.

    • Step 2: Insert the male end of the second pipe into the other side of the 45-degree elbow.

  • Inspection: After installation, inspect the connections to ensure there are no leaks or misalignments.

  • Support: Provide adequate support for the pipes connected to the 45-degree elbow to prevent strain and potential leaks.

Maintenance Tips:

  • Regular Inspection: Periodically inspect the 45-degree elbow for signs of wear, damage, or leaks.

  • Cleaning: Clean the elbow and the pipe connections regularly to prevent the buildup of debris and ensure optimal performance.

  • Replacement: Replace the 45-degree elbow if it shows signs of wear, damage, or if it no longer provides a tight seal.

Additional Considerations:

  • Temperature Range: Ensure that the operating temperature of the system is within the range specified for the UPVC material to avoid degradation or failure.

  • Pressure Rating: Verify that the 45-degree elbow meets the pressure requirements of your system to ensure safe and reliable operation.

  • Compatibility: Check the compatibility of the UPVC material with the specific fluids being used in your application to ensure long-term performance.

Example Usage:

  • Chemical Plant: In a chemical plant, the Transparent UPVC 45-Degree Elbow can be used to change the direction of a pipe carrying sulfuric acid, hydrochloric acid, or other corrosive chemicals, ensuring a secure and leak-proof connection. The transparency allows operators to visually monitor the flow and detect any issues.

  • Wastewater Treatment Plant: In a wastewater treatment plant, the 45-degree elbow can be used to change the direction of a pipe carrying wastewater and sludge, preventing corrosion and ensuring the longevity of the system. The clear material aids in visual inspection during maintenance.

  • Residential Plumbing: In a residential plumbing system, the transparent 45-degree elbow can be used to change the direction of a pipe carrying water, allowing homeowners to easily check for blockages or leaks.

  • Pharmaceutical Manufacturing: In pharmaceutical manufacturing, the 45-degree elbow can be used to change the direction of a pipe carrying sterile solutions, ensuring purity and preventing contamination. The transparency is crucial for maintaining hygiene standards.

Whether you're working on a new installation or retrofitting an existing system, the Transparent UPVC 45-Degree Elbow is a reliable and efficient choice for ensuring leak-proof and corrosion-resistant connections in a variety of applications. Its transparency, chemical resistance, and ease of use make it an indispensable component in any setting where visibility and durability are important.
