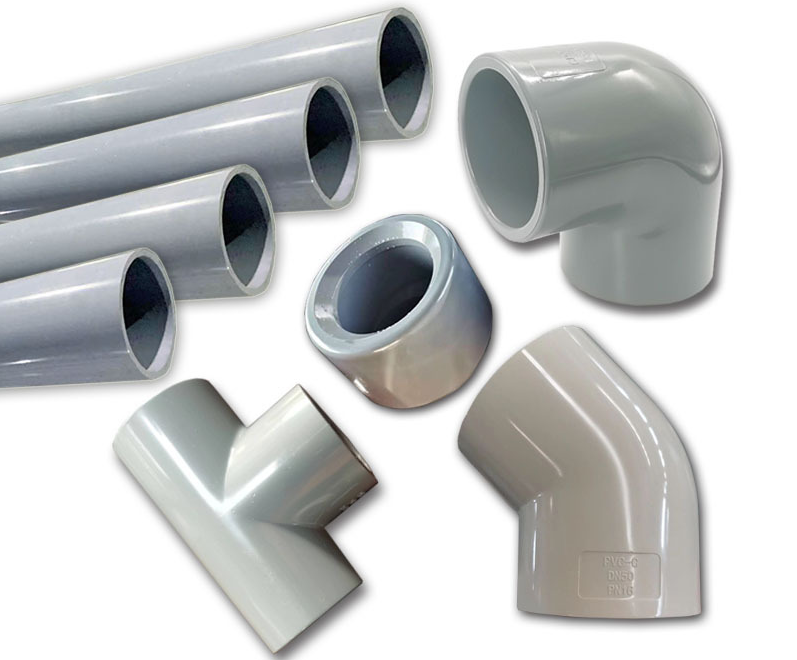

CPVC Industrial Piping, Chemical Grade PN10, High-Temperature Resistant, Thickened Plastic, Acid and Alkali Resistant for Industrial Water Treatment

CPVC (Chlorinated Polyvinyl Chloride) industrial piping is a high - performance plastic piping material. The “PN10” indicates a nominal pressure rating. In this case, it can typically withstand a certain level of pressure, with PN10 corresponding to a maximum allowable pressure of around 10 bar (this may vary depending on temperature and other factors).

Its high - temperature resistance property makes it suitable for applications where the fluid being transported is at an elevated temperature. The thickened plastic construction provides additional strength and durability.

The acid and alkali resistance characteristics are crucial for industrial water treatment processes, as the water may contain various acidic or alkaline substances.

High - Temperature Resistance: CPVC has a higher heat distortion temperature compared to standard PVC. It can generally handle temperatures up to around 90 - 100°C (depending on the specific grade and formulation), which allows it to be used in systems where hot water or warm chemical solutions are involved. For example, in some industrial water treatment plants, the water may need to be heated during certain purification steps, and CPVC piping can withstand such conditions without deforming or losing its integrity.

Acid and Alkali Resistance: CPVC is resistant to a wide range of acids and alkalis. It can handle solutions such as hydrochloric acid (HCl) in a certain concentration range and sodium hydroxide (NaOH). This resistance is due to the chemical structure of CPVC. The chlorine atoms in its molecular structure provide a certain degree of chemical inertness, protecting the pipe from chemical attacks. In industrial water treatment, where the water may have a pH ranging from acidic to alkaline due to the presence of different chemicals, CPVC piping can ensure the safe transportation of the water without being corroded.

Thickened Plastic: The thickened wall of the piping provides enhanced mechanical strength. It can better withstand external forces such as impacts and vibrations. For example, in an industrial setting where there may be heavy machinery operating nearby or the piping may be subject to accidental impacts during installation or maintenance, the thick - walled CPVC piping is less likely to crack or break compared to thinner - walled pipes.

Water Transport: CPVC piping is used to transport raw water, treated water, and various chemical solutions involved in the water treatment process. For example, it can be used to carry water from a water source such as a well or a reservoir to the treatment plant, and then to distribute the treated water to different points of use.

Chemical Dosing Systems: In water treatment, chemicals such as coagulants, disinfectants, and pH adjusters are added to the water. CPVC piping is suitable for transporting these chemicals because of its acid and alkali resistance. The pipes can ensure that the chemicals are accurately delivered to the points of injection without reacting with the pipe material and affecting the chemical dosing process.

Filtration Systems: The piping can be used to connect different components of a filtration system, such as sand filters, activated carbon filters, and membrane filters. Its resistance to chemicals and high temperatures ensures that it can function properly in the presence of the chemicals used for filter cleaning and the temperature changes that may occur during the filtration process.

Installation: CPVC pipes are usually easy to install. They can be joined using solvent welding or mechanical fittings. Solvent welding creates a strong, seamless joint. The pipes should be cut accurately to the required length, and the joint surfaces should be clean and free of debris before the solvent is applied. Mechanical fittings, such as compression fittings, can also be used and are more convenient for some applications where disassembly may be required in the future.

Maintenance: Regular inspection of the piping system is necessary. Check for any signs of leakage, cracks, or damage. If any chemical spills occur on the pipes, they should be promptly cleaned to prevent potential chemical reactions that could damage the pipe. In case of minor damage, repair kits can be used to patch the affected area, depending on the type and extent of the damage.
