CPVC Seven-Hole Clover-shaped Power Cable Conduit Pipe, High-Pressure CPVC Multi-hole Power Cable Protection Pipe, and Communications Clover-Honeycomb Tube

CPVC is a modified form of PVC. The chlorination process enhances its properties, making it more suitable for demanding applications such as cable conduits. It has excellent chemical resistance, which is crucial for protecting cables from the corrosive effects of substances they may come into contact with in various environments. For example, in industrial settings, there may be chemicals in the air or soil that could potentially damage unprotected cables.

CPVC also has good heat - resistance. Cables often generate heat during operation, and the conduit needs to be able to withstand these elevated temperatures without deforming or losing its protective properties. The material can typically handle temperatures higher than standard PVC, allowing it to be used in a wider range of conditions.

Its mechanical strength is another important factor. The CPVC used in cable conduits is strong enough to resist external pressures, such as from soil compaction in underground installations or accidental impacts in above - ground setups.

CPVC (Chlorinated Polyvinyl Chloride)

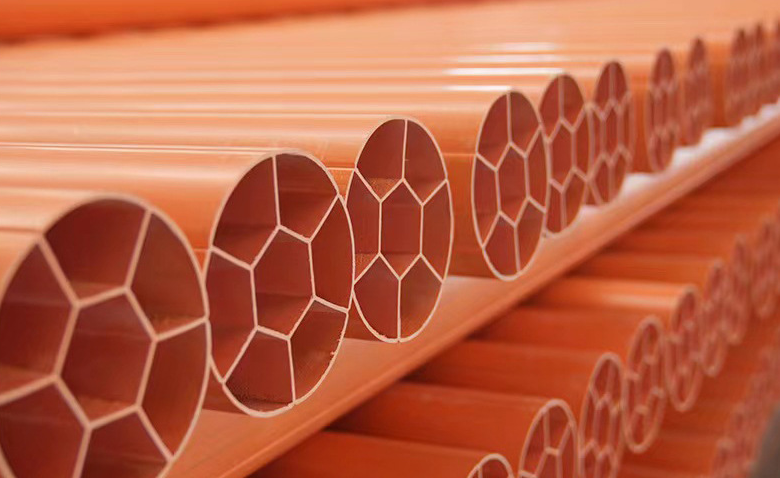

The clover - honeycomb tube for communications cables combines the benefits of a clover - like shape with a honeycomb - like internal structure. The honeycomb - like arrangement of the cable channels provides excellent cable management and protection. It allows for easy identification and access to individual cables, which is essential for maintenance and upgrades in communication systems. The structure also provides good mechanical protection, shielding the cables from mechanical stress and potential damage caused by factors such as rodents or accidental digging.

The multi - hole design of this type of conduit is similar in concept, but with a focus on high - pressure applications. The additional holes allow for the installation of multiple cables while maintaining the structural integrity of the pipe under high - pressure conditions. The CPVC material's strength and the well - designed multi - hole structure work together to prevent the conduit from collapsing or deforming when subjected to external pressures, such as in high - traffic areas where there may be heavy loads on the ground above the buried conduits.

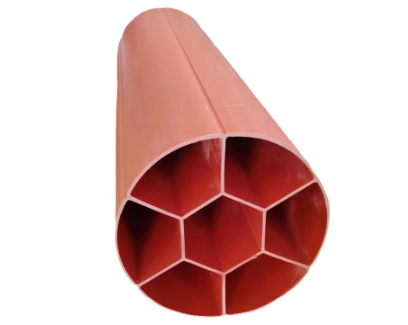

The seven - hole clover - shaped design provides a unique way to organize and protect multiple power cables. Each hole can accommodate a separate cable, keeping them separated and reducing the risk of electrical interference between cables. This is especially important in high - voltage or high - power applications where electrical noise and interference can cause problems such as signal distortion or equipment malfunctions.

The clover - shaped configuration also allows for efficient use of space. In crowded underground or above - ground cable routing situations, it can fit into limited spaces more effectively than single - hole conduits. The overall shape provides better stability and resistance to external forces due to its symmetrical design.

Seven - Hole Clover - shaped Power Cable Conduit Pipe

High - Pressure CPVC Multi - hole Power Cable Protection Pipe

Communications Clover - Honeycomb Tube

For communications cables, the clover - honeycomb tube is an ideal solution. It is used in telecommunication networks, including fiber - optic cable installations. The organized structure of the tube simplifies cable laying and maintenance. It protects the delicate fiber - optic cables from damage due to bending, crushing, or external impacts. In addition, the chemical and heat - resistance properties of CPVC ensure that the cables are safeguarded against environmental factors that could degrade their performance over time.

In power distribution systems, these CPVC conduit pipes play a vital role. They are used to protect power cables in substations, industrial plants, and urban power grids. The multi - hole and clover - shaped designs ensure that the cables are well - organized and protected during installation and operation. This helps to reduce the risk of power outages caused by cable damage and improves the overall reliability of the power supply system.

The high - pressure resistance of the conduits is beneficial in areas where there is a lot of ground activity, such as construction sites or areas with heavy vehicular traffic. The conduits can withstand the pressure exerted on them, ensuring the safety of the power cables inside.

Power Cable Applications

Communications Cable Applications

Regular inspection of the CPVC cable conduit pipes is necessary. Check for any signs of damage, such as cracks, leaks, or deformation. In the case of multi - hole conduits, ensure that the cables are still properly seated in their respective holes and that there is no movement or chafing that could lead to cable damage. If damage is detected, it's important to repair or replace the affected section of the conduit promptly. In addition, keep the area around the conduits clean to prevent the buildup of debris or substances that could potentially damage the conduits or the cables they protect.

CPVC cable conduit pipes are typically installed using methods such as solvent - welding or mechanical fittings. Solvent - welding creates a strong, seamless joint, but it requires careful application of the solvent and proper drying time. Mechanical fittings, such as couplings and elbows, offer more flexibility during installation, especially for making adjustments or repairs. When installing the seven - hole clover - shaped or multi - hole conduits, it's important to ensure that the cables are properly inserted into the individual holes to avoid damage and to achieve the best protection.

In underground installations, the conduits need to be laid at the appropriate depth to protect them from surface loads and to comply with local regulations. A layer of bedding material, such as sand, is often used to provide a cushion and support for the conduits.

Installation

Maintenance
