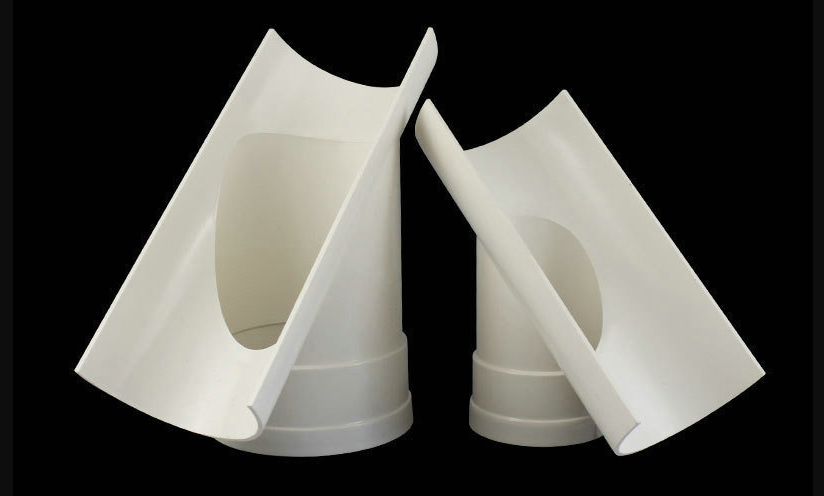

Polyvinyl Chloride (PVC) is a popular material for plumbing and piping systems due to its durability, cost-effectiveness, and ease of installation. A PVC slant saddle tee, also known as a slanted saddle tee or angled saddle tee, is a specialized fitting designed to tap into an existing pipe without the need for cutting or major disruption. This fitting is particularly useful in situations where adding a branch line to an already installed pipeline is necessary.
Features of PVC Slant Saddle Tees:
Angled Design: The slant saddle tee features an angled branch that is designed to connect at a specific angle to the main pipe, typically at a 45-degree angle. This design allows for the introduction of a new branch line without significant interference with the flow in the main line.
Ease of Installation: Unlike traditional tees, which require cutting the main pipe to install, a slant saddle tee can be installed around the existing pipe. After securing the saddle portion around the main pipe, a hole is drilled through the saddle and into the main pipe to create the connection.
Secure Connection: Once the hole is drilled, the branch of the tee is connected to the main pipe using a PVC solvent weld or other appropriate method, ensuring a watertight seal.
Versatility: PVC slant saddle tees are available in various sizes and can be used with PVC pipes of different diameters. They are commonly used in residential and commercial plumbing applications.
Cost-Effective: Installing a slant saddle tee is generally less expensive than cutting into an existing pipe and adding a traditional tee, as it requires fewer materials and less labor.
Operation:
To install a PVC slant saddle tee:
Preparation: Ensure the area where the saddle will be installed is clean and dry. Mark the spot on the main pipe where the saddle will be placed.
Fitting Placement: Slide the saddle portion of the tee over the main pipe and secure it in place according to the manufacturer’s instructions.
Drilling: Drill a hole through the saddle and into the main pipe using the appropriate drill bit size specified by the saddle’s dimensions.
Connection: Insert the branch of the tee into the hole and secure it with PVC solvent cement or another approved method to create a secure and leak-proof connection.
Applications:
PVC slant saddle tees are commonly used in a variety of applications where tapping into an existing line is required, such as:
Plumbing Systems: Adding new fixtures or appliances to a home’s water supply line.
Irrigation Systems: Branching off irrigation lines without interrupting the main flow.
Heating Systems: Introducing new radiators or heating elements into a central heating system.
Ventilation Systems: Creating new vent connections without significant disruption to the existing ductwork.
Benefits:
Using PVC slant saddle tees offers several benefits over traditional tapping methods:
Minimal Disruption: Installation can be performed with minimal interruption to the main line’s flow.
Time-Saving: The process is quicker compared to cutting and splicing traditional tees.
Cost-Efficient: Reduces the overall cost of installation due to the simpler procedure and fewer materials needed.
By incorporating PVC slant saddle tees into plumbing systems, professionals can achieve efficient and cost-effective installations while maintaining the integrity of the existing pipeline.
