PVC Pipe Dimensions: What You Need to Know Before Buying

Outer Diameter (OD): The outer diameter is the measurement of the outside of the pipe. It's a crucial dimension when it comes to fitting pipes together. For instance, in a Schedule 40 PVC pipe (a common type), a 1/2 - inch nominal pipe has an outer diameter of about 0.840 inches. The OD determines the size of the coupling or joint that can be used to connect the pipe to other components.

Inner Diameter (ID): The inner diameter affects the flow capacity of the pipe. It's calculated by subtracting twice the wall thickness from the outer diameter. For a 1/2 - inch nominal Schedule 40 PVC pipe, the inner diameter is about 0.622 inches. The ID is important for applications such as plumbing and irrigation, where the flow rate of a fluid (like water) through the pipe is a concern. The formula for calculating the cross - sectional area of the pipe (A = π*(ID/2)^2) is used to estimate the flow rate, given the velocity of the fluid.

The nominal size of a PVC pipe is a standard way of referring to its size. It's not the exact measurement of either the inner or outer diameter. For example, a 1 - inch nominal PVC pipe doesn't have an actual diameter of 1 inch. Nominal sizes are used to simplify the identification and selection of pipes and fittings. They are based on traditional sizing systems and are widely used in the industry.

In plumbing and construction, you'll often encounter nominal sizes ranging from 1/8 - inch to 24 - inches or more. The nominal size helps in quickly matching pipes with the appropriate fittings and valves, as manufacturers design them to be compatible based on these nominal designations.

The schedule number of a PVC pipe refers to its wall thickness. Common schedules include Schedule 40 and Schedule 80. Schedule 40 pipes are typically used in general - purpose applications such as residential plumbing and light - duty drainage. Schedule 80 pipes are used in situations where higher pressure resistance is required, like in some industrial processes or in high - rise building water supply systems.

The wall thickness of a PVC pipe provides its strength and durability. Thicker - walled pipes can withstand higher pressures and external forces. The wall thickness is related to the pipe's schedule. For example, Schedule 80 PVC pipes have a thicker wall than Schedule 40 pipes of the same nominal size. A 1 - inch nominal Schedule 40 pipe has a different wall thickness compared to a 1 - inch nominal Schedule 80 pipe.

The wall thickness also affects the overall weight and cost of the pipe. Thicker - walled pipes are generally heavier and more expensive, but they offer better performance in high - pressure or high - stress applications.

Buying longer pipes might seem more cost - effective at first, but you also need to consider any waste that might occur if you have to cut the pipe to fit your specific project requirements. Sometimes, shorter lengths might be a better choice if you have a project with many different lengths needed and want to minimize waste.

Longer pipes can reduce the number of joints needed in a project. Fewer joints mean less potential for leaks and can make the installation quicker. However, longer pipes can be more difficult to handle and transport, especially in tight spaces. For example, in a plumbing project in a small bathroom, a 10 - foot pipe might be more cumbersome to work with than a 5 - foot pipe.

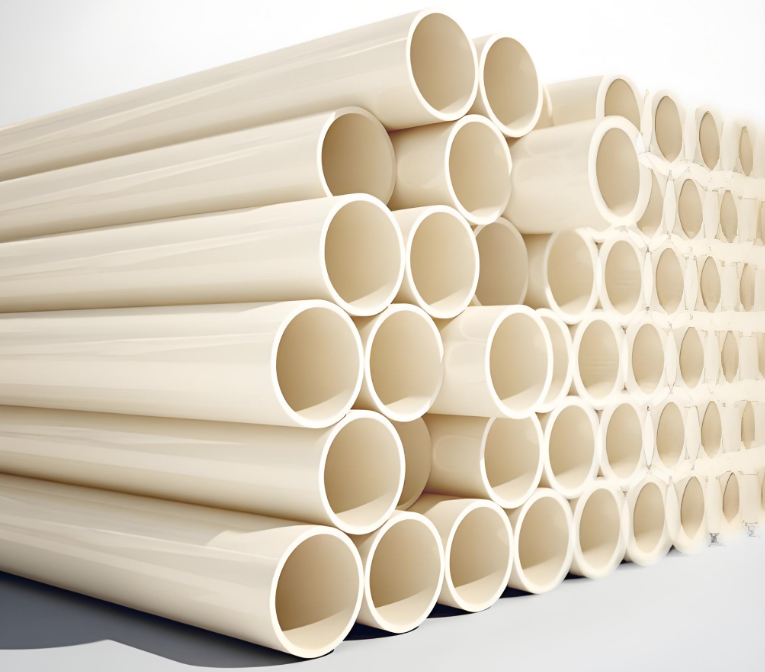

PVC pipes are usually available in standard lengths. Common lengths are 10 - feet and 20 - feet. The length you choose can affect the installation process and cost.
