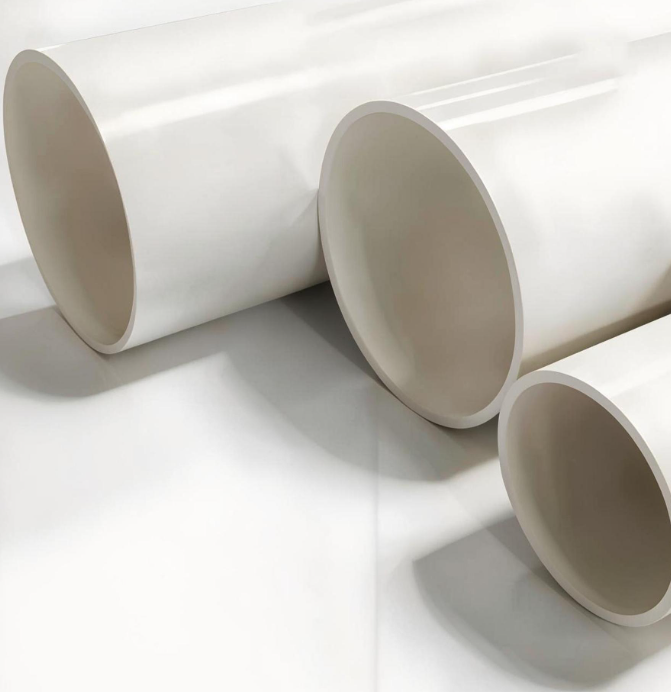

Comprehensive Guide to PVC Pipe Dimensions

1. Outer Diameter (OD)

• The outer diameter of a PVC pipe is the measurement of the pipe's outside circumference. It is one of the most important dimensions as it determines the compatibility of fittings and couplings. For example, in a standard PVC plumbing system, a 1 - inch nominal size PVC pipe typically has an outer diameter of about 1.315 inches. The nominal size is a standardized way of referring to the pipe size, which is not always the exact inner diameter.

• Different applications may require specific outer diameter sizes. In irrigation systems, smaller outer diameter pipes (such as 0.5 - inch OD) might be used for more precise water distribution to individual plants or rows of plants. In contrast, for large - scale industrial water supply or drainage, pipes with outer diameters of several inches or more could be utilized.

2. Inner Diameter (ID)

• The inner diameter is the measurement of the inside of the pipe. It directly affects the flow capacity of the pipe. The formula for calculating the cross - sectional area of a pipe (which is related to flow rate) is A = π*(ID/2)^2, where A is the cross - sectional area and ID is the inner diameter. For a given pressure, a larger inner diameter allows for a greater volume of fluid to flow through the pipe.

• The inner diameter is related to the outer diameter and the wall thickness of the pipe. If you know the outer diameter and the wall thickness, you can calculate the inner diameter using the formula ID = OD - 2wall thickness. For example, if a PVC pipe has an outer diameter of 2 inches and a wall thickness of 0.25 inches, the inner diameter would be 2 - 20.25 = 1.5 inches.

3. Wall Thickness

• Wall thickness is a critical dimension as it provides the strength and durability of the PVC pipe. Thicker - walled pipes are generally more resistant to pressure and external forces. In applications where high - pressure fluids are involved, such as in some industrial processes or high - rise building water supply systems, pipes with thicker walls are used.

• The wall thickness is usually specified according to the pipe's schedule. For example, Schedule 40 PVC pipes have a different wall thickness compared to Schedule 80 pipes. Schedule 40 pipes are commonly used in general - purpose plumbing and irrigation applications, while Schedule 80 pipes are more suitable for applications that require higher pressure resistance, such as in some chemical - handling systems.

4. Standard Sizes and Nominal Sizes

• PVC pipes come in a variety of standard sizes. The nominal size is a convenient way to refer to the pipe size and is often used in the industry. For example, nominal pipe sizes range from 1/8 inch to 24 inches or more. However, the actual outer and inner diameters may vary slightly depending on the manufacturing standards and the schedule of the pipe.

• In the United States, the American National Standards Institute (ANSI) and the American Society for Testing and Materials (ASTM) have established standards for PVC pipe dimensions. These standards ensure that pipes and fittings from different manufacturers are compatible with each other as long as they adhere to the same standards.

5. Length of PVC Pipes

• PVC pipes are usually available in standard lengths. Common lengths include 10 - foot and 20 - foot sections. The length of the pipe can affect installation efficiency and cost. For example, in a large - scale plumbing project, longer pipes may reduce the number of joints required, which can lower the installation cost and potentially reduce the risk of leaks at the joints. However, longer pipes may also be more difficult to handle and transport during installation.

6. Metric and Imperial Dimensions

• In addition to the imperial system (used in the United States and some other countries), PVC pipes are also available in metric dimensions. Metric - sized pipes are more commonly used in countries that follow the metric system. For example, a metric - sized PVC pipe might have an outer diameter of 20 mm, 25 mm, 32 mm, etc. When working with international projects or when using imported pipes and fittings, it's important to be aware of the differences between metric and imperial dimensions and ensure proper compatibility.
