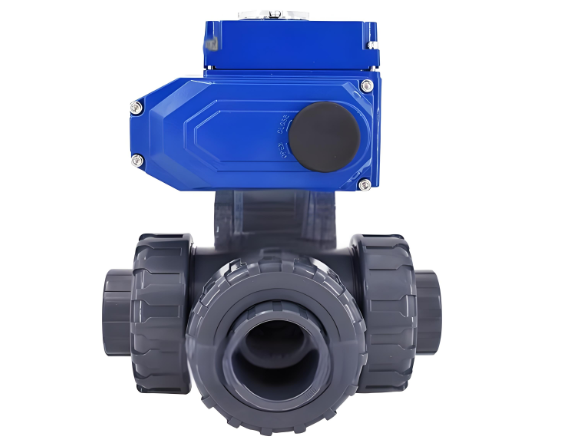

Electric Ball Valves: Electric PVC Three-Way Ball Valves, Electric Plastic Three-Way Ball Valves, Corrosion-Resistant L/T Pattern

Electric PVC and Plastic Three - Way Ball Valves: These valves are designed to handle the flow of fluids in three different directions. The use of PVC (Polyvinyl Chloride) and other plastics makes them lightweight and cost - effective. PVC is a well - known material for its excellent resistance to corrosion, which is crucial when dealing with a variety of fluids. The three - way design allows for more complex flow routing compared to a standard two - way valve.

L/T Pattern: The L/T pattern refers to the different configurations of the valve ports. In the L - pattern, the valve can direct the flow in a 90 - degree turn, similar to an L - shape. The T - pattern, on the other hand, enables the fluid to split or combine in a T - shaped flow path. This provides flexibility in fluid handling systems such as in plumbing, chemical processing, or irrigation.

Electric Actuation: The electric actuation mechanism is a key component. It consists of a motor and a gear system that rotates the ball inside the valve. When power is applied to the motor, it drives the gears to precisely position the ball, allowing for accurate control of the flow direction and rate. The electric actuation enables remote control and automation, which is beneficial in many industrial and commercial applications.

Ball and Ports: Inside the valve, there is a ball with holes or ports. In the closed position, the ball blocks the flow paths. When the electric actuator rotates the ball, the ports align with the inlet and outlet ports of the valve body. In a three - way valve, depending on the position of the ball, the fluid can flow from one inlet to two different outlets (T - pattern) or from two different inlets to one outlet (also T - pattern), or it can change direction in an L - pattern flow.

Sealing Mechanism: To prevent leakage, the ball seats against seals. These seals are usually made of elastomeric materials that can conform to the shape of the ball and provide a tight seal. The pressure of the fluid helps to enhance the sealing effect. As the ball rotates, the seals maintain their integrity to ensure that the fluid only flows through the intended paths.

Chemical Processing: In chemical plants, these valves are used to control the flow of corrosive chemicals. The corrosion - resistant properties of PVC and plastic materials are essential for handling acids, bases, and solvents. For example, in a chemical mixing process, the three - way valve can be used to combine different chemicals in precise ratios. The L/T pattern allows for flexible routing of the chemicals, depending on the specific reaction requirements.

Irrigation Systems: In agricultural and landscape irrigation, the valves can be used to distribute water to different zones. The T - pattern can be used to split the water flow to irrigate multiple areas simultaneously. The electric actuation allows for automated control, such as scheduling watering times and adjusting the flow rate according to the needs of different plants. The corrosion - resistant nature of the valve is beneficial as it may come into contact with fertilizers and other chemicals in the water.

Plumbing and HVAC: In building plumbing and heating, ventilation, and air - conditioning (HVAC) systems, the valves can be used to control the flow of water or other fluids. The L - pattern can be used to change the direction of the fluid flow in a piping system. In an HVAC system, for example, the valve can be used to redirect the flow of a coolant or a heating medium. The electric control provides the ability to integrate the valve into a building's automation system for energy - efficient operation.

Corrosion Resistance: As mentioned earlier, the PVC and plastic materials used in these valves provide excellent resistance to corrosion. This reduces maintenance costs and extends the life of the valve, especially when dealing with corrosive fluids.

Versatility in Flow Control: The three - way design and L/T patterns offer a wide range of flow - control options. This allows for more complex fluid - handling operations and provides flexibility in system design. The ability to change the flow direction and split or combine flows is a valuable feature in many applications.

Electric Actuation Benefits: The electric actuation enables remote control and automation. This is convenient for operators as they can adjust the valve settings from a central control room or even remotely via a network connection. Automation also allows for more precise control of the flow, leading to improved process efficiency and energy savings.

Installation: When installing these valves, it's important to ensure that the piping is properly aligned with the valve ports. The electric actuator should be wired correctly according to the manufacturer's instructions. The valve body should be securely mounted to prevent any vibration - induced damage. In the case of PVC valves, it's essential to use appropriate PVC - compatible fittings and adhesives to ensure a leak - free connection.

Maintenance: Regular maintenance includes checking the seals for wear and leakage. The ball and the valve body interior should be inspected for any signs of damage or debris buildup. The electric actuator's performance should be tested periodically, including the operation of the motor, gears, and control mechanism. If any issues are found, such as a leaking seal or a malfunctioning actuator, they should be addressed promptly to ensure the valve's proper functioning.
