Electric & Pneumatic UPVC Ball Valves with Dual Union Fittings: Plastic Ball Valves for Versatile Applications

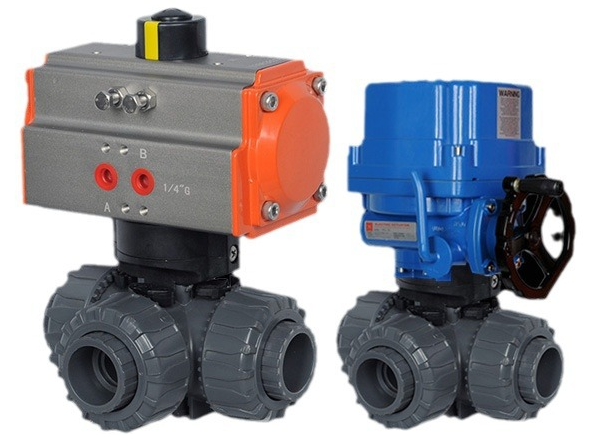

Electric PVC Ball Valve


Overview:
The valve body is made of hygienic, non - toxic, highly corrosion - resistant, lightweight materials and has a wide range of applications. For example, it is used in pipeline systems for pure water and drinking water, drainage and sewage pipeline systems, brine and seawater pipeline systems, acid - base and chemical solution systems, and many other industries.


Features:
The electric UPVC ball valve adopts a double - union socket connection, allowing for quick assembly without the need for special tools. It has the advantages of a compact structure, wear - resistance, easy disassembly, convenient maintenance, and simple operation.


Technical Parameters
Nominal Diameter DN (mm)
15 - 150


Connection Method
Flange, double - union


Valve Body Material
UPVC (- 10°C~70°C), CPVC (- 40°C~95°C), RPP (- 14°C~100°C), PVDF (- 40°C~140°C)


Valve Core Material
UPVC (- 10°C~70°C), CPVC (- 40°C~95°C), RPP (- 14°C~100°C), PVDF (- 40°C~140°C)


Sealing Material
PTEF, EPDM, NBR


Applicable Media
Food - industry chemical solvents compatible with PVC
