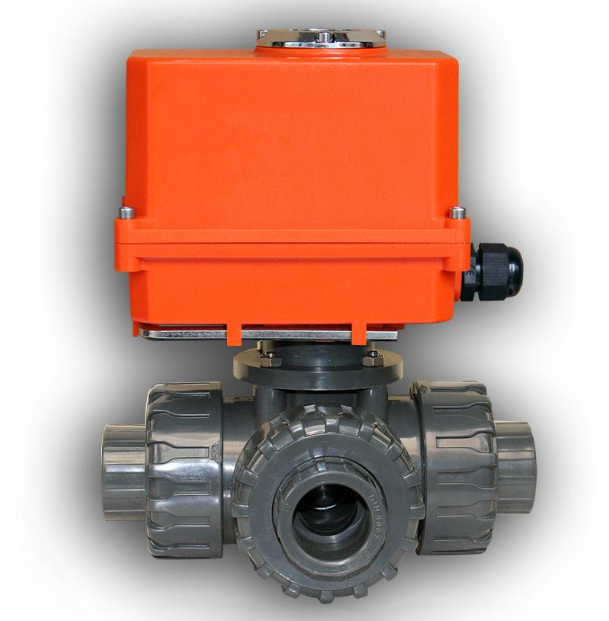

Plastic Electric Ball Valve: Power-Off Reset, Eco-Friendly UPVC/PPH/CPVC Three-Way with Dual Ferrules

Technical Parameters and Performance

Technical Parameters of SDV Series Electric Actuators

• Power Supply: AC110, 220, 380V / DC24, 220V

• Output Torque: 50N·m ~ 2000N·m

• Optional Functions: On - off type, contact point type, opening signal, intelligent regulation type

• Operating Range: 0°~ 90°±5°

• Operating Time: 15s / 30s / 60s

• Ambient Temperature: - 30°C ~ 60°C

• Manual Operation: With handle operation

• Limit Position: Electrical and mechanical double - limit positions

• Protection Level: IP - 67 (Explosion - proof housing: Exd Ⅱ BT4 IP67/Exd)

• Input Signal: 0 - 10, 1 - 5VDC / 4 - 20mA (Intelligent regulation type)

Technical Parameters of UQ921F Electric UPVC Ball Valve Bodies

• Nominal Diameter: DN15~100mm

• Nominal Pressure: PN1.0MPa

• Valve Shaft Material: UPVC, CPVC, PP, PVDF, ABS

• Valve Body Material: UPVC, CPVC, PP, PVDF, ABS

• Ball Material: UPVC, CPVC, PP, PVDF, ABS

• Valve Seat Sealing: PTFE, FPM

• Temperature: 0°C ~ + 60°C

• Structure Type: Double - oil - ring, flange

• Applicable Media: Food industry, petrochemical industry, and various fluids compatible with PVC

• Features: Compact structure, small volume, light weight, and convenient installation

Product Features

1. The electric UPVC ball valve adopts a two - way double - union ball valve, which can be used as both a union and a valve. It allows the ball valve to be closed and the union to be removed for maintenance of the rear - section engineering without shutting down the front - section equipment and pipelines.

2. The valve body of the electric UPVC ball valve has excellent chemical corrosion resistance. There are FPM or EPDM "O" - rings at the union end, and in combination with the use of PTFE seats, it can prevent corrosion from most chemical substances.

3. The tightness of the seat of the electric UPVC ball valve can be adjusted appropriately. The pipe wall is smooth and clean, resulting in low frictional resistance and adhesion when transporting fluids.

4. The electric UPVC ball valve has self - extinguishing flame - retardant performance. It has low thermal conductivity, about 1/200 of that of steel. It is lightweight, equivalent to 1/5 of that of steel pipes and 1/6 of that of copper pipes.

5. The content of heavy ions in the medium of the electric UPVC ball valve meets the standards of ultra - pure water, and the hygienic indicators meet the requirements of national hygienic standards.

6. The electric UPVC ball valve has excellent anti - aging and anti - ultraviolet properties, significantly prolonging its normal service life compared to other pipeline systems.
