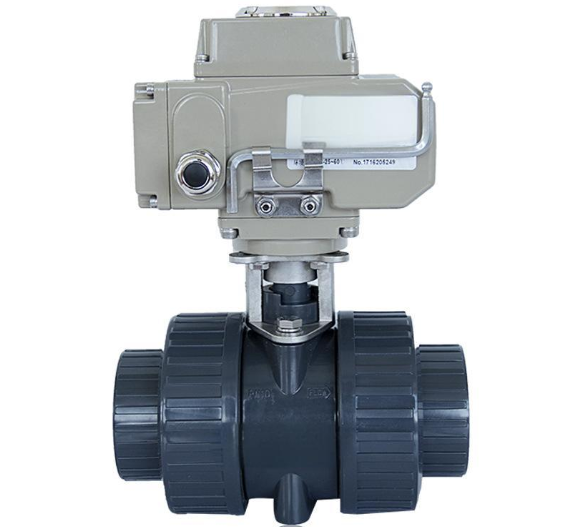

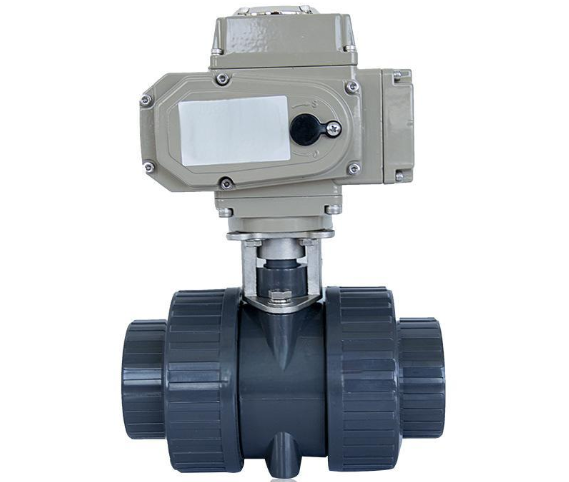

Electric UPVC Ball Valve: Electric Plastic Corrosion-Resistant Acid & Alkali Double Ferrule Ball Valve, UPVC Material

UPVC (Unplasticized Polyvinyl Chloride) is a rigid and durable plastic material. It is known for its excellent resistance to corrosion, making it an ideal choice for valves that come into contact with acids and alkalis. This material can withstand a wide range of chemical substances without degrading, which is crucial in many industrial and chemical applications.

The UPVC used in the ball valve provides a smooth internal surface for the fluid to flow through. This helps to reduce friction and pressure loss, ensuring efficient fluid transfer. Additionally, UPVC is a lightweight material, which makes the valve easier to handle and install compared to metal valves.

The electric actuation of the valve offers several advantages. It allows for remote control, enabling operators to adjust the valve's position from a central control room or even from a remote location via a connected network. This is highly beneficial in industrial settings where access to individual valves may be difficult or dangerous.

The electric actuator provides precise control over the valve's opening and closing. This precision is essential for applications that require accurate flow regulation, such as in chemical dosing systems or in processes where the flow rate of corrosive fluids needs to be carefully controlled.

The double ferrule design enhances the connection between the valve and the piping system. Ferrules work by compressing onto the pipe and the valve body to create a tight seal. The double ferrule arrangement provides added security against leakage. It also allows for some flexibility in the connection, accommodating minor misalignments between the valve and the pipe.

This design simplifies the installation process. The valve can be easily attached to the pipes without the need for complex welding or threading procedures. It also makes maintenance and replacement of the valve more convenient, as the connections can be quickly disassembled and reassembled.

Inside the valve, there is a ball with a hole or port. In the open position, the hole in the ball aligns with the inlet and outlet ports of the valve body, allowing the fluid to flow through. As the ball is rotated, the flow path is adjusted. When the ball is rotated to a position where the hole is not in line with the ports, the valve is closed, and the fluid flow is blocked.

The ball is usually made of a material that is compatible with the UPVC body and the fluids it will handle. It is designed to provide a tight seal against the valve seats when in the closed position to prevent leakage.

The electric actuator consists of a motor, gears, and a control mechanism. When a control signal is received (either from a local control panel or a remote control system), the motor rotates. The rotation is then transmitted through the gears to the ball, causing it to rotate and adjust the valve's position.

The control mechanism often includes features such as limit switches. These switches ensure that the valve opens and closes to the correct positions and prevent over - rotation of the ball, which could damage the valve or the actuator.

In chemical plants, this valve is used to handle a variety of corrosive chemicals. It can be used in the transfer of acids, alkalis, and other reactive substances between different process vessels and storage tanks. For example, in a chemical synthesis process, the valve can control the flow of reactants and products, ensuring the safety and efficiency of the reaction.

The ability to remotely control the valve is especially useful in handling hazardous chemicals. Operators can adjust the flow without having to be in close proximity to potentially dangerous substances.

In water treatment facilities, the valve can be used to control the flow of chemicals used for water purification, such as coagulants, disinfectants, and pH adjusters. The corrosion - resistant properties of UPVC ensure that the valve can withstand the chemical environment. The double ferrule connection makes it easy to install and maintain the valve in the complex piping systems of water treatment plants.

In industrial buildings, the valve can be used in the plumbing systems that handle corrosive fluids. This includes systems for waste disposal, coolant circulation, and process water supply. The electric actuation allows for integration into building automation systems, enabling more efficient control of fluid flow and energy savings.

The UPVC material's resistance to acids and alkalis is a significant advantage. It reduces the risk of valve failure due to chemical attack, which can lead to leaks and system failures. This corrosion resistance also extends the valve's lifespan, resulting in lower maintenance and replacement costs over time.

Compared to metal valves, UPVC valves do not rust or corrode in the presence of moisture and corrosive chemicals, making them a more reliable option for long - term use.

The double ferrule design simplifies installation, eliminating the need for specialized plumbing skills or tools in many cases. The lightweight nature of the UPVC valve also makes it easier to handle during installation.

For maintenance, the valve's connections can be easily disassembled, allowing for quick inspection, cleaning, or replacement of internal components. The electric actuator can also be serviced or replaced relatively easily, depending on the design.

The electric actuation provides the ability to remotely control the valve, increasing operational convenience and safety. The precise control over the valve's position allows for accurate flow regulation, which is essential for processes that require strict control over the amount and rate of fluid flow.

When installing the valve, it's important to ensure that the pipes are properly cut and deburred to fit the double ferrules. The ferrules should be tightened according to the manufacturer's instructions to achieve a proper seal. The electric actuator needs to be wired correctly, following the provided wiring diagram, and proper grounding should be provided to prevent electrical hazards.

The valve should be installed in a position that allows for easy access to the actuator and other components for maintenance and adjustment. It's also advisable to test the valve's operation after installation to ensure it functions correctly.

Regular maintenance includes checking the ferrules for signs of leakage and tightening them if necessary. The ball and the valve seats should be inspected for wear and damage. The electric actuator's performance, including the motor and gears, should be tested periodically.

If any signs of chemical degradation or damage to the UPVC body are noticed, the valve may need to be replaced. Additionally, the control system and wiring associated with the electric actuator should be checked regularly to ensure reliable communication and operation.
