Nominal pressure: PN10
Three-way valve caliber: Inlet: DN110, Outlet: DN90
Connection type: Threaded

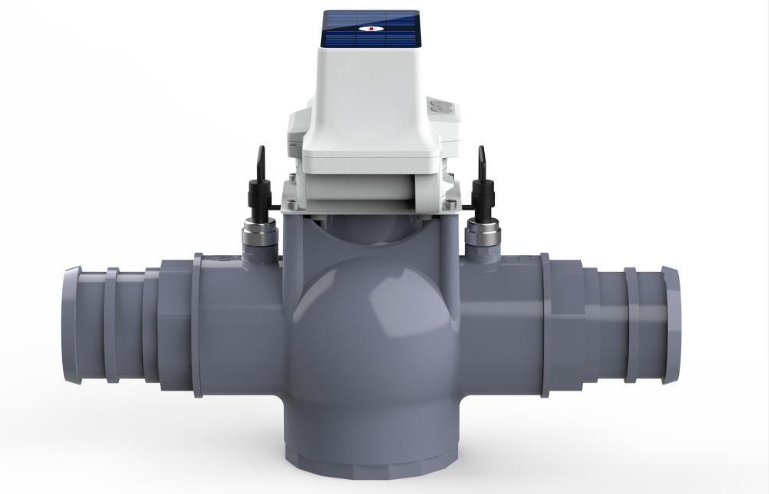

Valve body structure: Three-way ball valve, L/T
Material: Valve: PVC-U, Controller: Nylon + Stainless steel
Initial flow velocity: > 0.1 m/S
Monitoring accuracy: Level 4
Applicable media: Water / Oil
Applicable temperature: 0 - 55 °C
Number of monitored channels: 2 channels - corresponding to the outlets
Pressure range: 0 - 1.6 MPa
Monitoring accuracy: 1% FS
Communication method: 4G/LoRa
Power supply method: Lithium battery and solar charging system
Protection level: IP65
