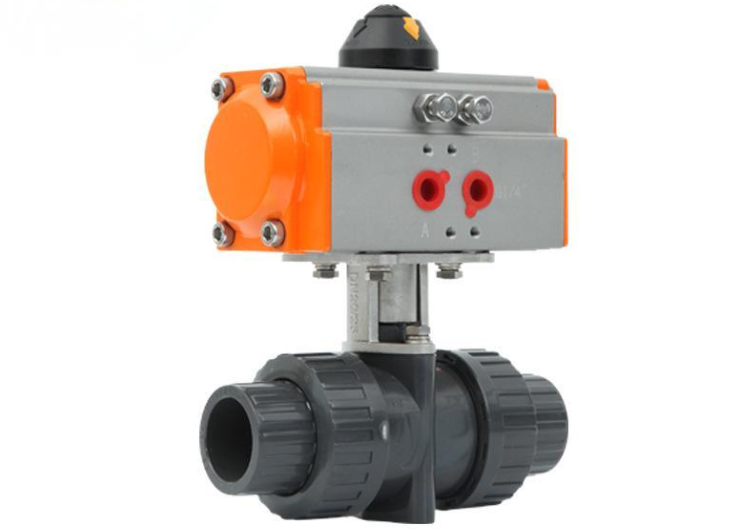

This PVC ball valve with a bracket and shaft is a highly practical device. The dedicated bracket provides stable support, ensuring the proper positioning of the valve during operation. The shaft plays a crucial role in the valve's opening and closing mechanism.
The inclusion of an adapter for pneumatic or electric actuators makes this valve very versatile. For pneumatic actuators, it allows for quick and efficient air - powered operation, while for electric actuators, it enables precise control and automation. This adaptability means it can be integrated into various systems with different power sources and control requirements.
Moreover, the mention of it being suitable for plastic butterfly valves as well expands its application range. It offers a unified solution for different types of valves in a system. Overall, this product simplifies installation and operation, and provides a reliable option for fluid control systems that require either pneumatic or electric actuation, especially those involving plastic valves.
| Category | Details |
|---|---|
| Type | Double - acting piston type, spring - return type |
| Nominal diameter | DN15~100mm |
| Air supply pressure | Double - acting: 2 - 8 bar / Single - acting: 4 - 8 bar |
| Nominal pressure | PN1.0MPa |
| Output torque | Double - acting: 4N·M~10560N·M Single - acting: 7N·M~2668N·M |
| Operating temperature | Normal temperature type: -20°C~80°C (nitrile rubber O - ring) High - temperature type: -20°C~160°C (fluororubber O - ring) |
| Operating range | 0~90°±5° |
| Threaded connection | GTD40~GTD83/ATD50~ATD88 G1/8" GTD110~GTD350/ATD100~200 G1/4" |
| Valve position signal | Positioner: 4~20mA / Feedback device: Full - open and full - close signals |
| Shaft material | UPVC, CPVC, PP, PVDF, ABS |
| Valve body material | UPVC, CPVC, PP, PVDF, ABS |
| Ball material | UPVC, CPVC, PP, PVDF, ABS |
| Seat seal | PTFE |
| Temperature range | 0°C~+60°C |
| Connection method | Double - oil - ring, flange |
| Applicable medium | Food industry, petrochemical, and various fluids compatible with PVC |
| Structural features | Compact structure, small volume, light weight, and convenient installation |
