| Item | Details |
|---|
| Ambient Temperature | -10°C～60°C |

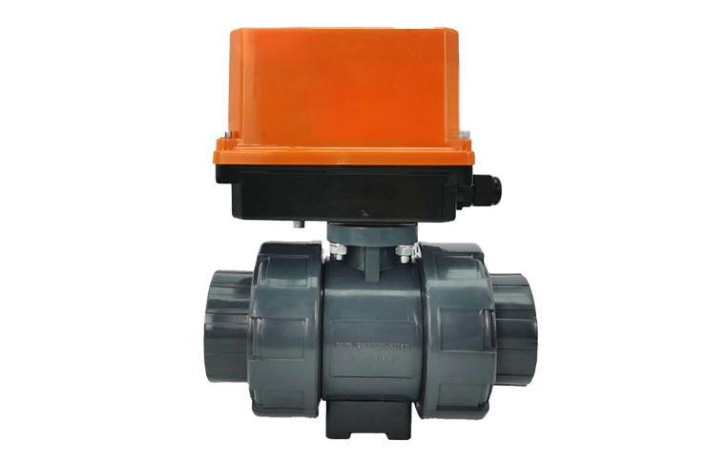

| Motor | Rotary angle - stroke electric actuator |
| Control Voltage | AC220V, AC380V, DC24V |
| Size | 15, 20, 25, 32, 40, 50 |
| Action Form | On - off type |
This table shows the parameters of three models: ZL - 03, ZL - 05, and ZL - 10. The detailed parameter information and its English translation are as follows:
Motor Power (W): 20 watts
Rated Current (A): 0.18 amperes
Power Frequency: 50/60 Hz
Slew Angle: 0 - 90 degrees adjustable
Time/Torque: 11/25 Nm
Signal Feedback: Switch Mode
Optional Voltage: Passive Contact
Installation Angle: AC220V
Electrical Interface: M16
Waterproof/Ambient Temperature: IP65 / -15 - 55°C
Outline Size (Length × Width × Height): 137/85/103 mm
Bottom Connecting Shaft: Square Convex 12×12 mm
Connecting Flange 5211: F05
Weight (KG): 1.3 kg
Motor Power (W): 6 watts
Rated Current (A): 0.20 amperes
Power Frequency: 50/60 Hz
Slew Angle: 0 - 90 degrees adjustable
Time/Torque: 17/50 Nm
Signal Feedback: Switch Mode
Optional Voltage: Passive Contact
Installation Angle: AC220V, (DC24V)
Electrical Interface: M20
Waterproof/Ambient Temperature: IP65 / -15 - 55°C
Outline Size (Length × Width × Height): 143/120/146 mm
Bottom Connecting Shaft: Octagonal Fovea 14×14 mm
Connecting Flange 5211: F05, F07
Weight (KG): 2.3 kg
Motor Power (W): 12 watts
Rated Current (A): 0.25 amperes
Power Frequency: 50/60 Hz
Slew Angle: 0 - 90 degrees adjustable
Time/Torque: 17/100 Nm
Signal Feedback: 4 - 20mA Regulatory Type
Optional Voltage: Passive Contact
Installation Angle: AC220V, (DC24V)
Electrical Interface: M20
Waterproof/Ambient Temperature: IP65 / -15 - 55°C
Outline Size (Length × Width × Height): 143/120/146 mm
Bottom Connecting Shaft: Octagonal Fovea 17×17 mm
Connecting Flange 5211: F05, F07
Weight (KG): 2.5 kg
